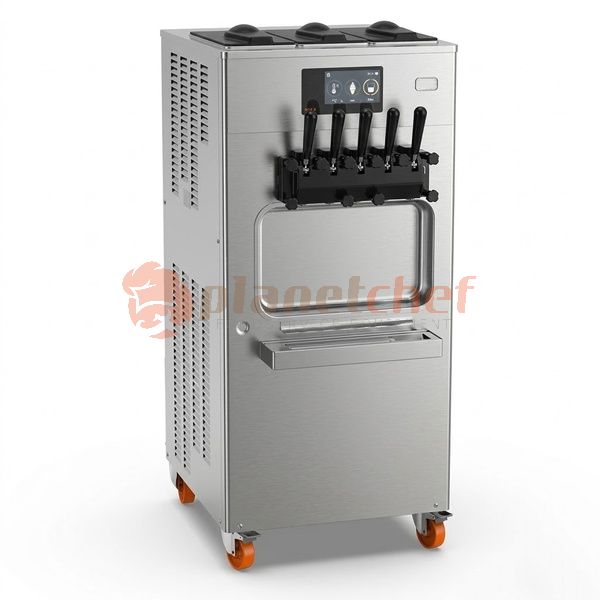

KISS5 vertical yogurt machine

KISS5 vertical yogurt machine

Features and strengths:
- Three flavours+mix.
- Agitation in the tank (EMU version).
- Pump powered.
- Air or water condensation.
- Automatic conservation of the product in the tank with energy saving function and temperature regulation.
- Gear pump for easy cleaning and maintenance.
- Exceptional production performance up to 40kg/h.
- Monobloc mixer in resin (standard) or steel with mobile scraping shoes (optional).
- Natural refrigerant gas to respect the environment and highly efficient refrigeration circuit, which allow high energy and water savings (water-condensed machines).
- 7'' capacitive touch screen with proprietary graphic interface.
- Recipe menu that allows the operator to dedicate an ideal freezing and conservation criterion to each product.
- “Creative” function (patented) available for each recipe, which allows the processing of products with non-traditional balancing of ingredients.
- Exclusive “Stop&Draw” signaling that alerts the operator when it is possible to dispense.
- Management and programming of machine washes to comply with HACCP processes. New electronic control parameters to verify correct washing execution.
- Automatic and programmable start-up (daytime production function) and stand-by (nighttime conservation).
- High capacity memory storage of commands, changes and alarms.
- Possibility to set the count of portions dispensed.
- Availability of multimedia files for ordinary use and maintenance of the machine.
- Bathtubs integrated into the top and with inclined bottom for better functional and hygienic performance.
- Maximum flexibility thanks to the total autonomy of the mixture conservation tanks and the independent consistency control, which allow you to combine flavors with different characteristics and with different quantities and frequency of dispensing.
- Possibility of turning off half the machine in the event of low season or in the ordinary cleaning operation and/or changing a single flavour, keeping the other part running.
- CTS system (patented) which prevents operating anomalies, intervening in the event of any errors in the machine's use by the operator.
- Wi-Manager 4.0, IOT system developed by Frigomat for the remote verification and control of machines through specific functions that refer to production analysis, recipe archive, Real Time and event history.

---

Technical Specifications:
Condensation:Air/Water
Hourly Production:72 kg
No. flavours:3 flavors + 2 mixes
Power supply V/Hz/Ph:400/50/3+N or 220/60/3
Electrical power:6.5/6.7 kW
Dimensions:660x1440x930 mm
Weight:365 kg
